In 1982 Seiko created a watch for making calls and watching television. His only problem was arriving too early

History is full of devices that were ahead of their time. I am not referring to literary or cinematographic machines like the tablet by Kubrick or the multiple predictions from Verne, but to other devices that were put on sale decades ago and now we realize that they are very similar to some of the latest gadgets on the market.

One of these inventions was Seiko TV Watch. In its day this rarity was considered and recognized as the smallest television in the worldand even made appearances in some movies, but today no one can miss its striking resemblance to current smart watches, and in a way we could say that we are facing a distant relative.

The history of this device began in 1972, but the first step was not taken by Seiko but by another North American company called Hamilton. They were the creators of Press P1the first digital wrist watch in history. The Japanese they acquired to Americans, and they embarked on their own path into the digital age by launching their first watch of this type in 1973.

At that time it was said that society was moving towards a revolution in visual information, and to join it with its new range of watches the japanese company started to work on the research and development of liquid crystal panels (LCD) with active matrix that were capable of reproducing moving images.

Over the following years, these efforts helped their watches become increasingly smaller and thinner, with higher component density and more energy efficient. They were also implementing new functions such as stopwatches and calculators.

After three years of development and hundreds of millions of yen invested, the summer of 1982 Seiko advertisement in Tokyo a new watch. It was about TV Watchthe first to finally allow us to watch television on our wrist.

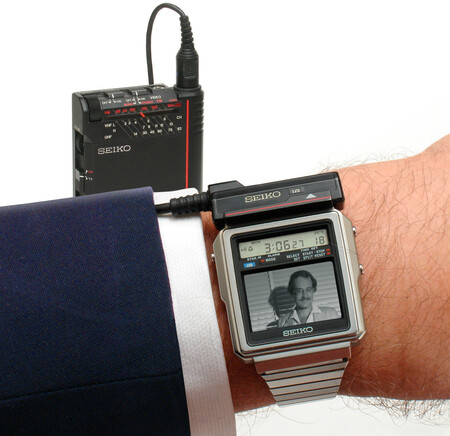

This was Seiko’s TV Watch

A watch that you can watch television on. Today this concept seems simple, but back then being able to carry it out was a little more complicated. The TV Watch was made up of three different elements that had to be connected together for it to work. The result was a science fiction product, yes, but a little uncomfortable to wear.

On the one hand we had the clock, but we had to connect it to a radio and television receiver the size of a walkman. We also needed headphones, and these also had to be connected to the signal receiver. And how could you carry so much cable with you in a fairly comfortable way? Well, very simple, pay attention to this drawing that appeared in your manual.

As you can see, the trick was to put the receiver cable under the sleeve to connect it to the watch. But in case we didn’t want to complicate our lives, the TV Watch also had a function to listen only to the audio of television broadcasts.

The watch itself had dimensions of 40 x 49 x 10 millimeters and a weight of 80 grams, and all its magic was concentrated in its innovative 1.2-inch white and blue LCD screen with a resolution of 32k pixels and 10 shades of gray. I also had a second smallest screen in which we could see the time, set the alarm and use the stopwatch as with any other digital watch.

During the presentation of the device, its creators had to give certain explanations about how they had achieved such ingenuity. They said their new panels controlled the molecular arrangement of liquid crystal within an electric field, and that this made it possible to create miniature images with very low power consumption. Especially when compared to the cathode ray tubes of conventional televisions.

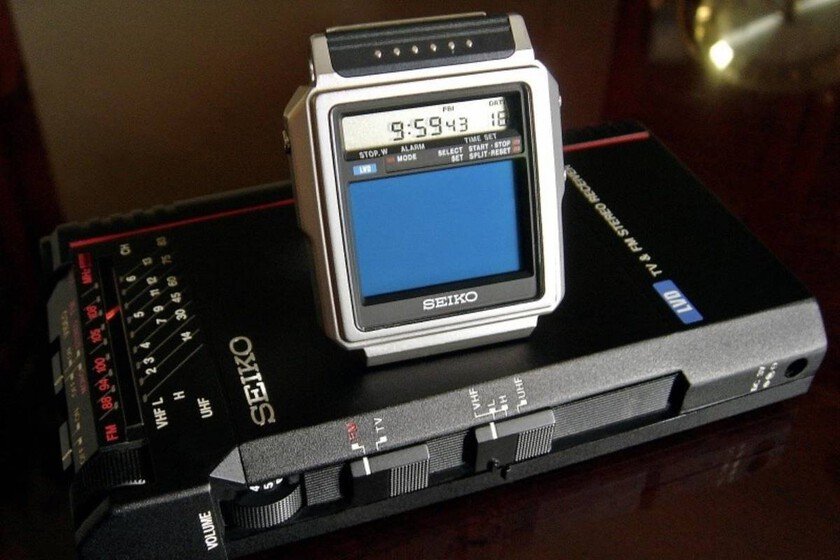

The receiver measured 74.5 x 125 x 19 millimeters and weighed 140 grams. This made it too big to carry in a back pocket, but perfect for the inside jacket pocket. Its battery consisted of two AA batteries that gave it a range of five hours, and it tuned both FM radio and television on VHF & UHF channels.

What could have been and was not

The TV Watch arrived on the Japanese market in December 1982 with a single DXA001 model that cost 108,000 yen, although a second, cheaper DXA002 model was later released. The difference between the two was that the second included a hearing aid instead of headphones, and its price dropped to 98,000 yen. In exchange, these two models today would be worth around 600 and 500 euros respectively.

The presentation of the device managed to generate a lot of interest, and the watch made front pages of newspapers and headlines on television. It was considered an innovative product for allowing us access a large amount of information in real timeand it attracted so much attention that a year later it also ended up reaching the US market.

During its launch in Japan, Seiko managed to sell 2,200 units, and the president of the company’s North American subsidiary said that the reception from the American media had been so good that he believed he could sell all the ones they manufactured. This optimism translated into the production of between 15,000 and 20,000 units ready for export.

But not everyone saw the TV Watch as an invention destined to revolutionize the market. In fact, it is known that at Sony they came to say that their laboratories had the capacity to develop a similar product, but that They didn’t think there was a big enough market. for this type of devices. In the end it turns out that they were right, and the watch did not end up becoming a successful product.

In the TV Watch curriculum we find several dates indicated. In 1982 he won the Nikkei Award for Superior Quality Products and Services, and a year later he made an appearance in Octopussythe new James Bond movie. The watch culminated its career in 1984 by entering the Guinness Book of Records as the smallest television in the world.

In 1983 Seiko took advantage of the technology they had developed to go a little further and present the first color liquid crystal display. This new screen was implemented in the natural successor to its successful watch, which ended up being called Color Pocket TV. But this is another story.
